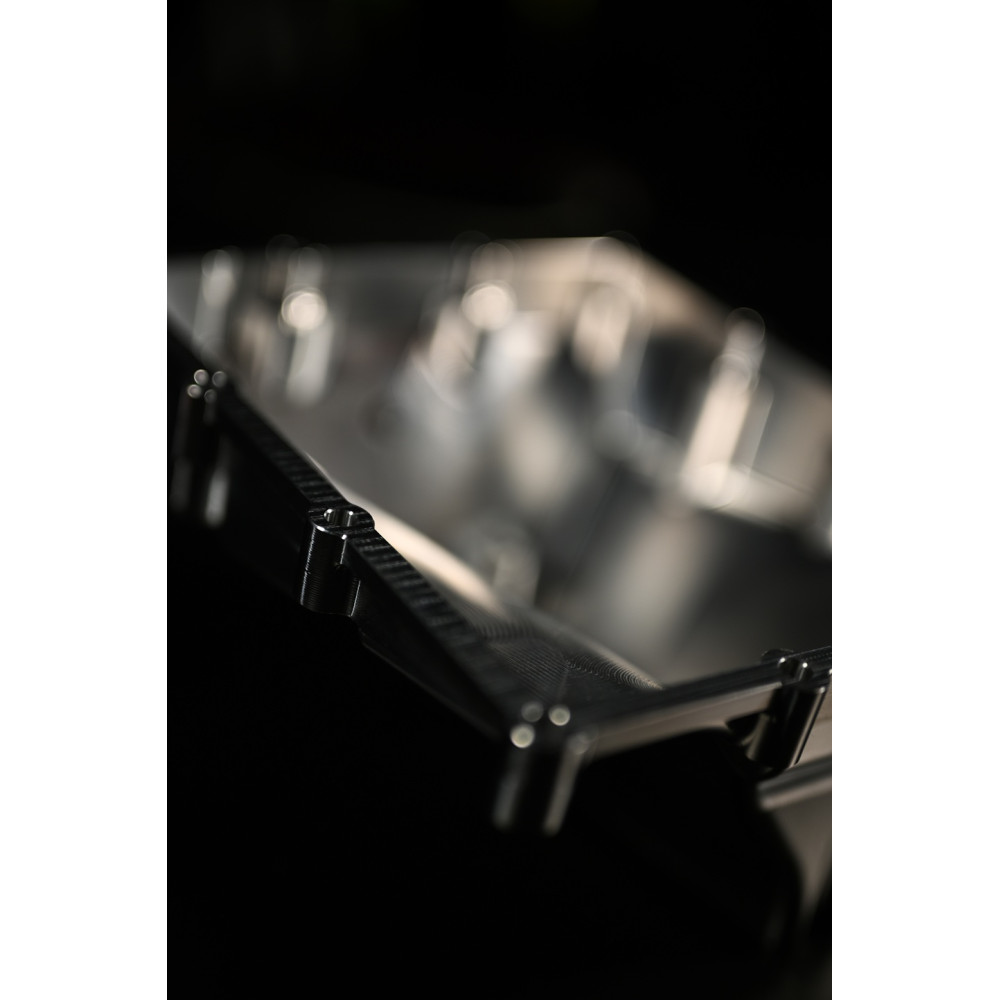

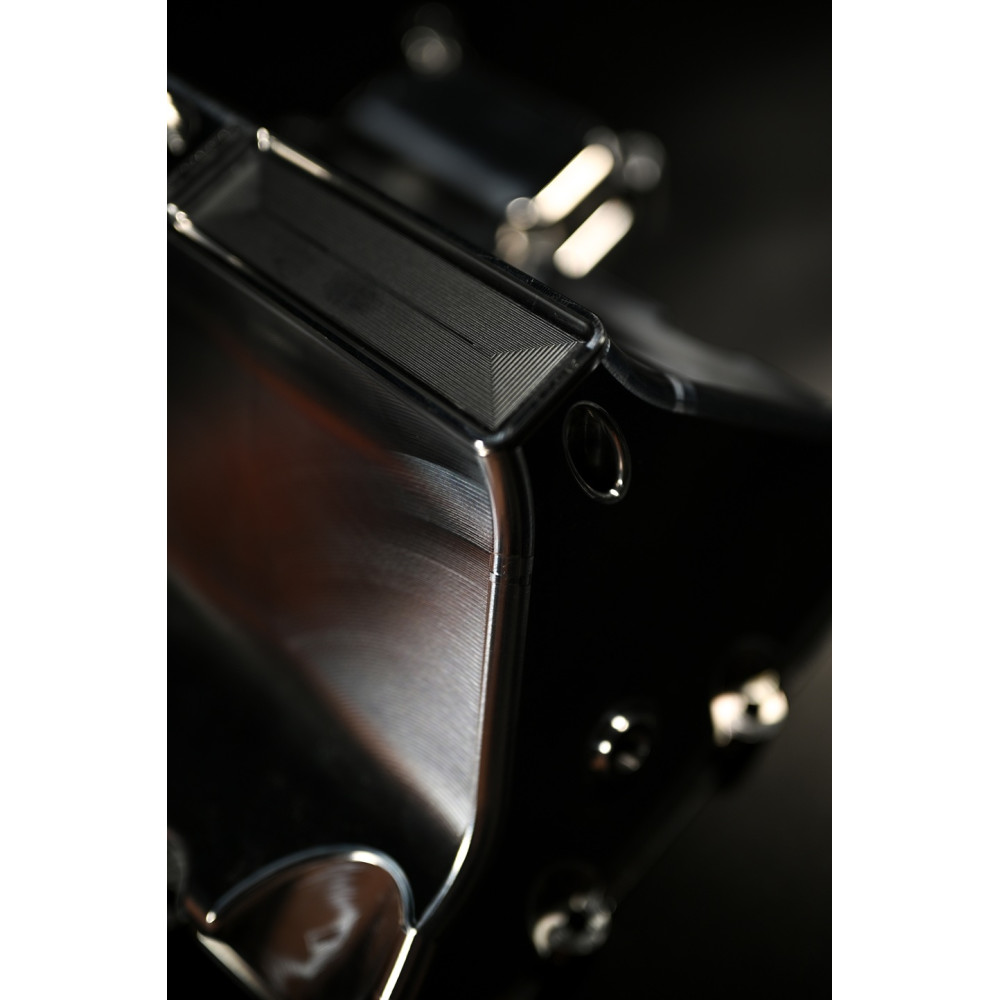

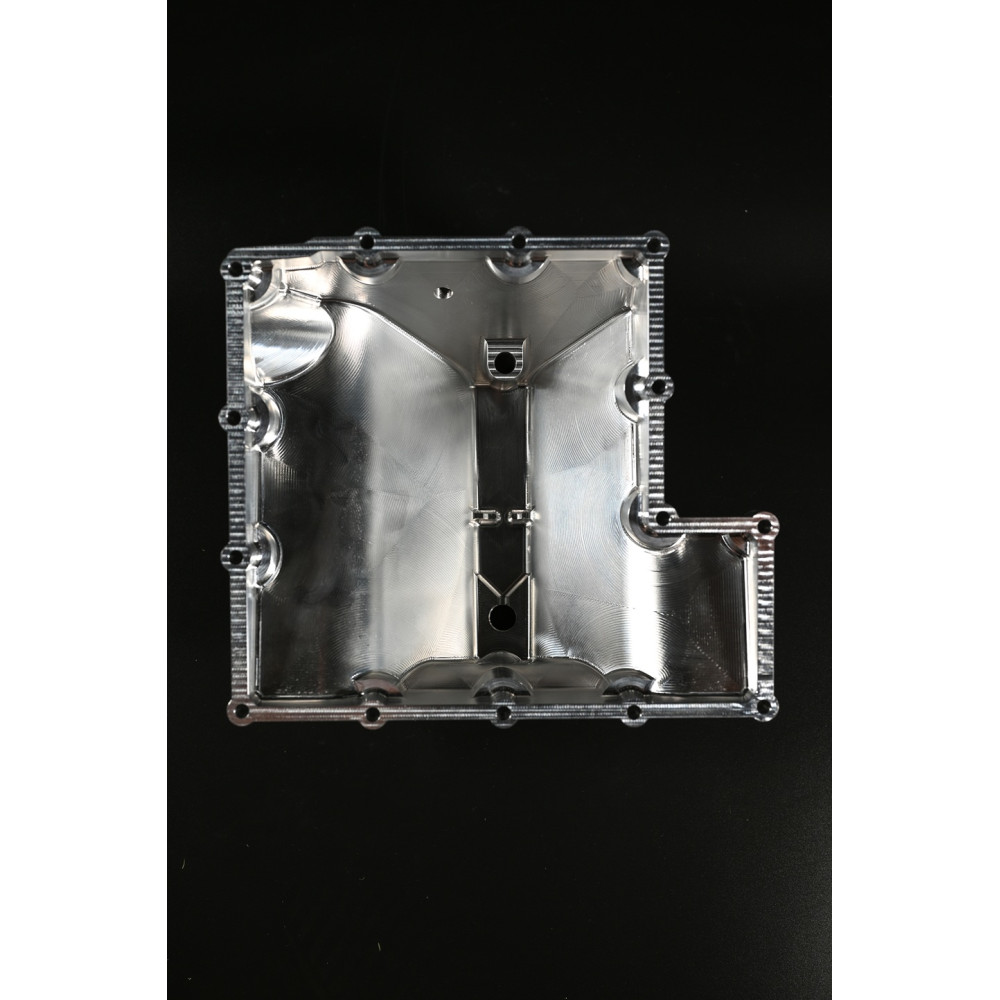

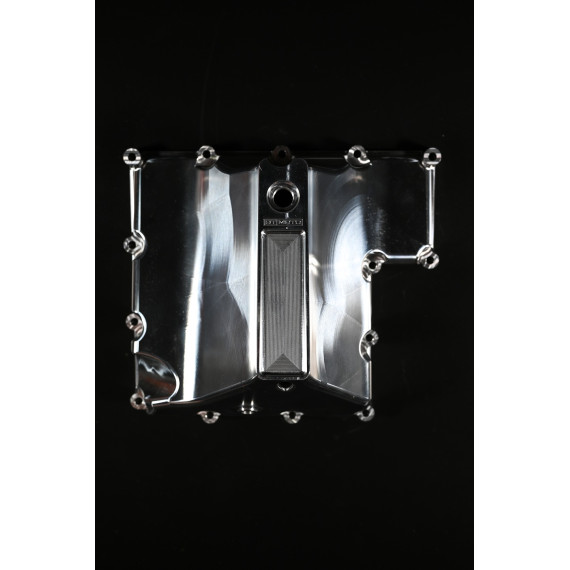

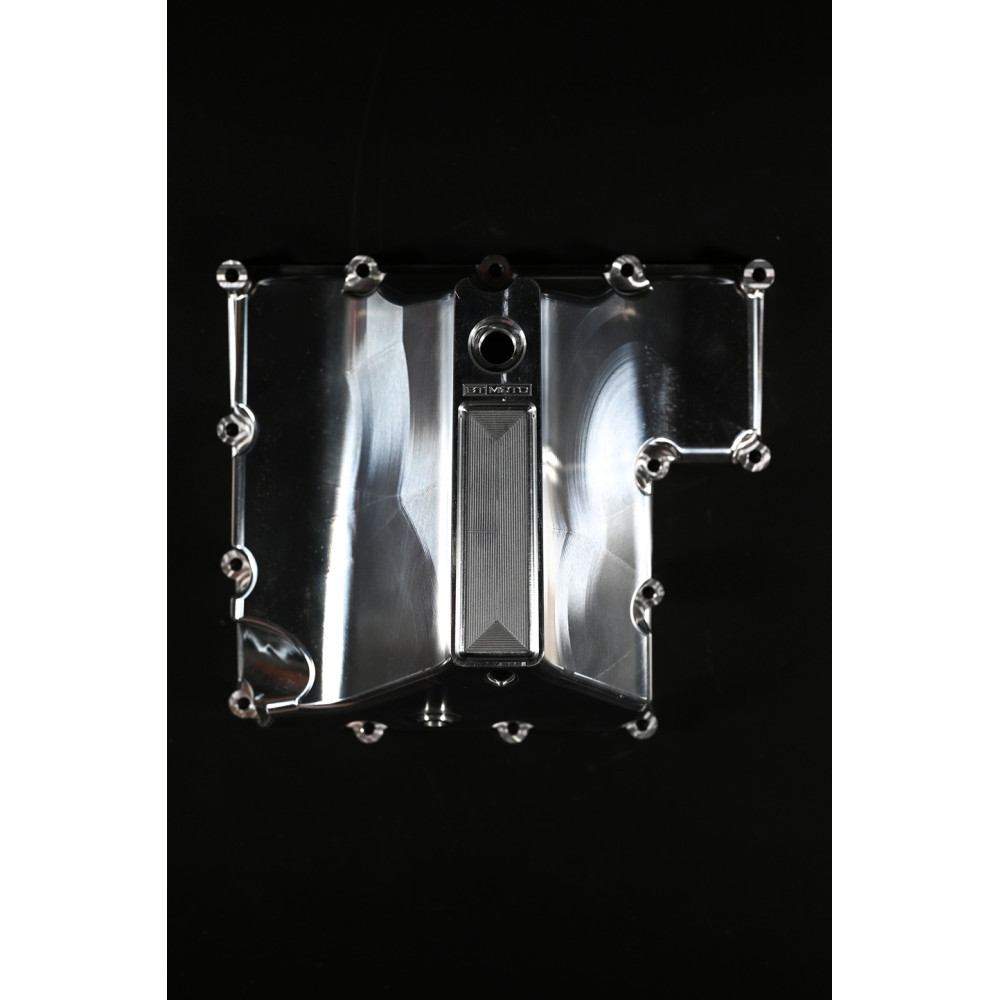

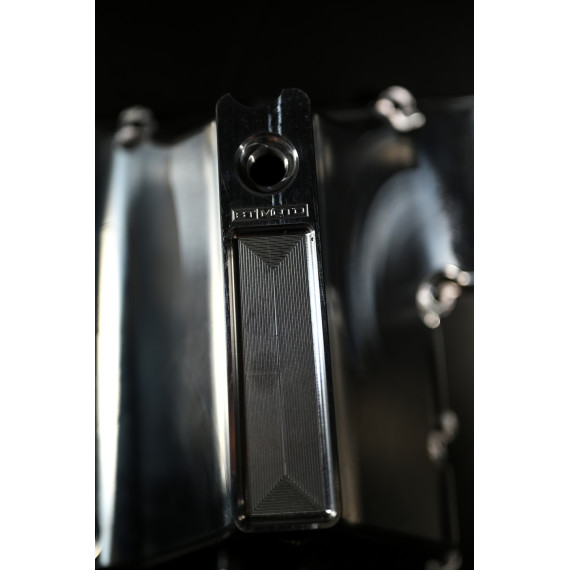

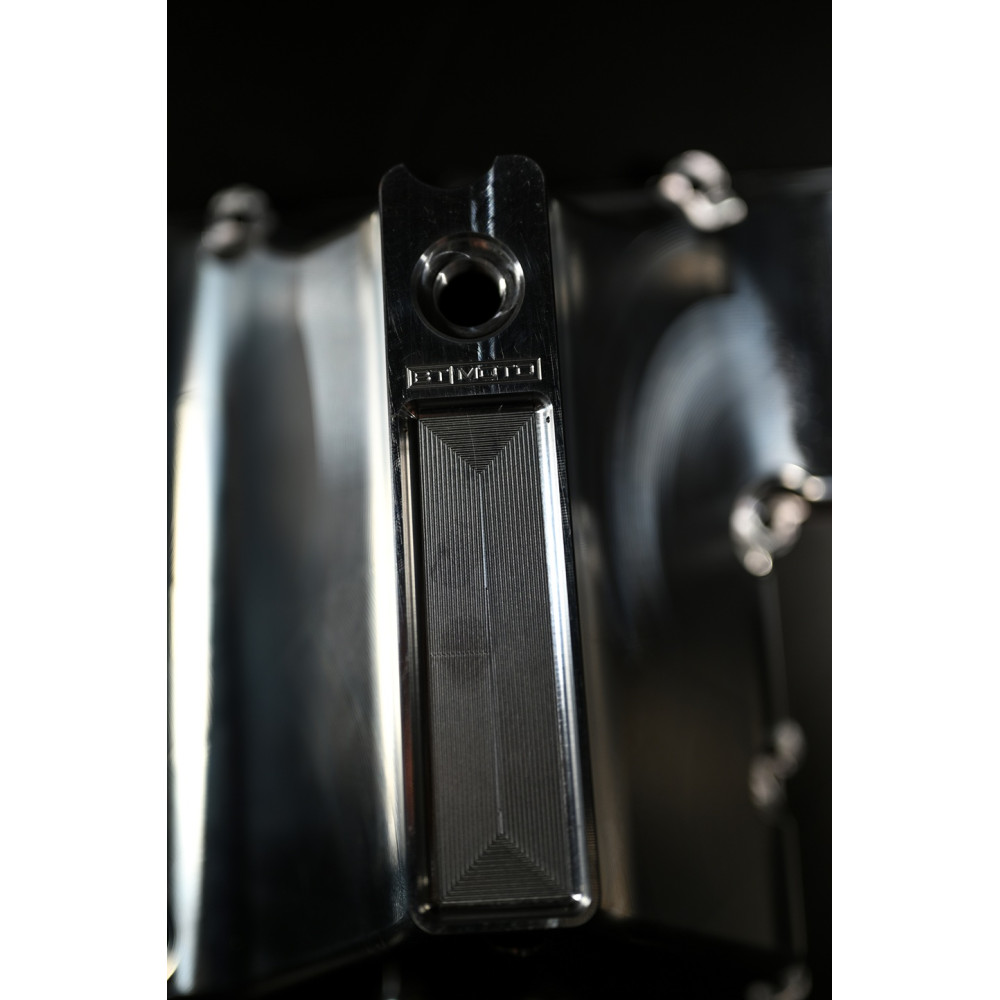

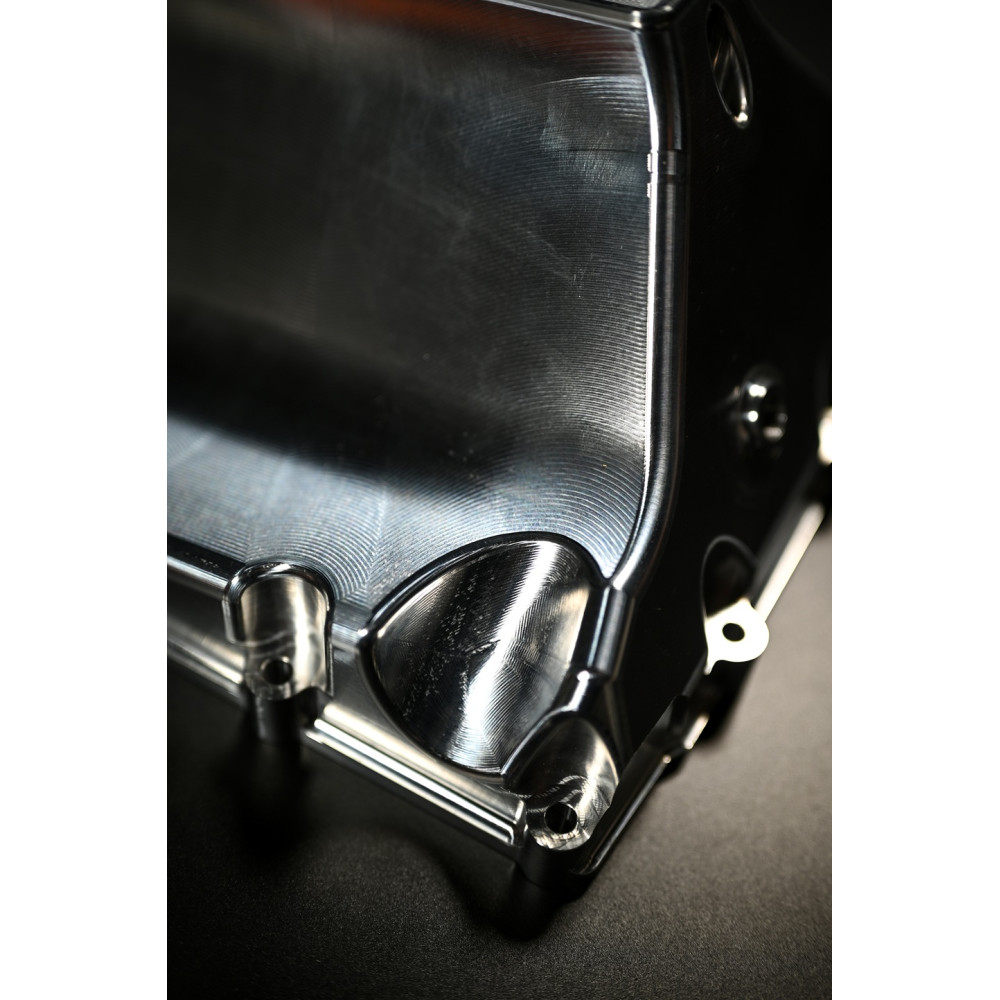

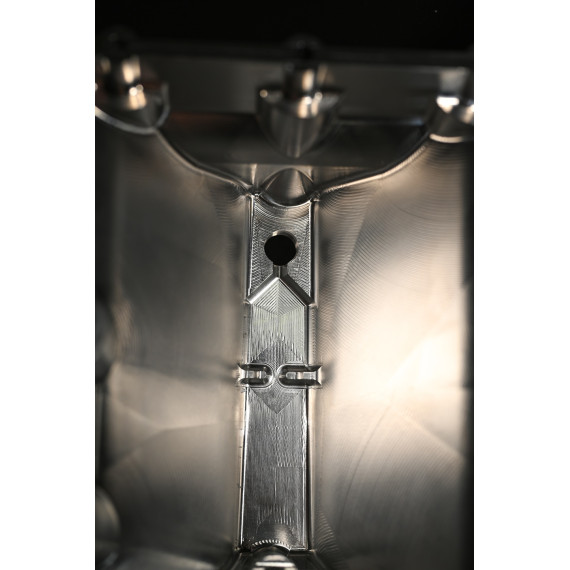

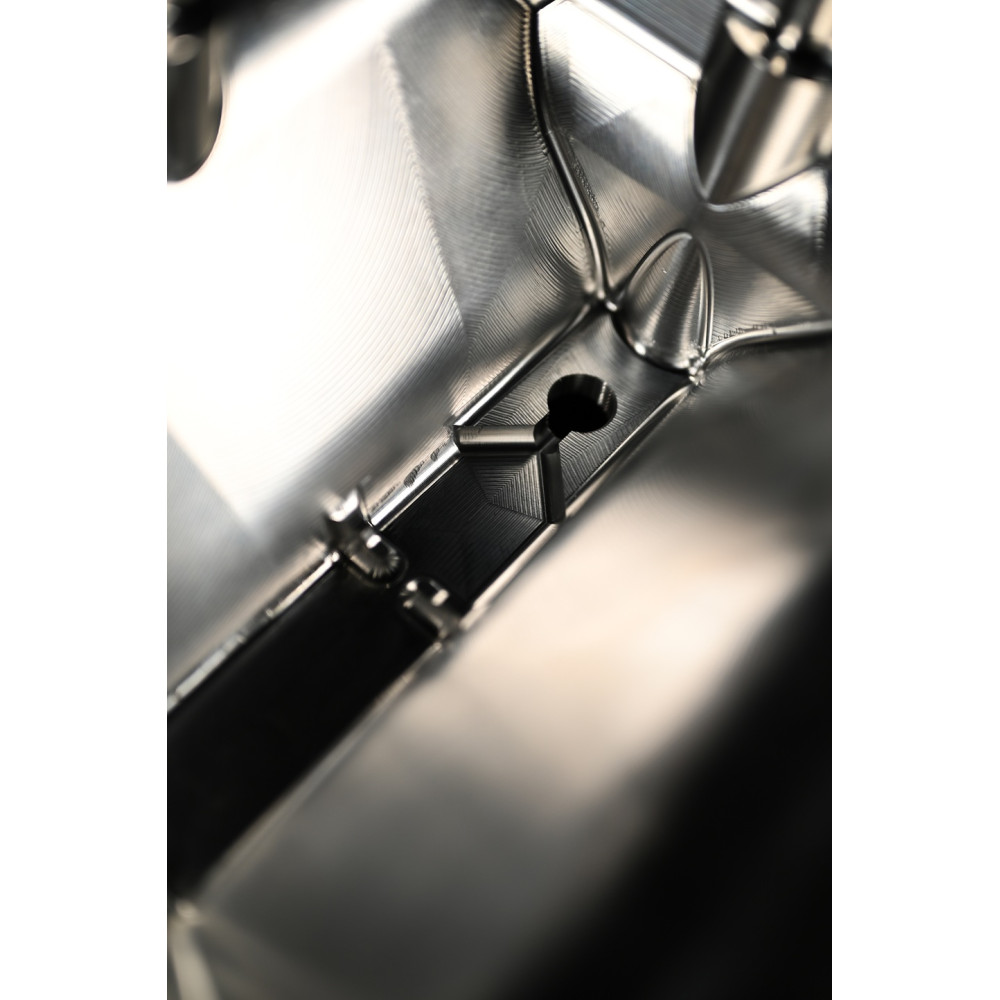

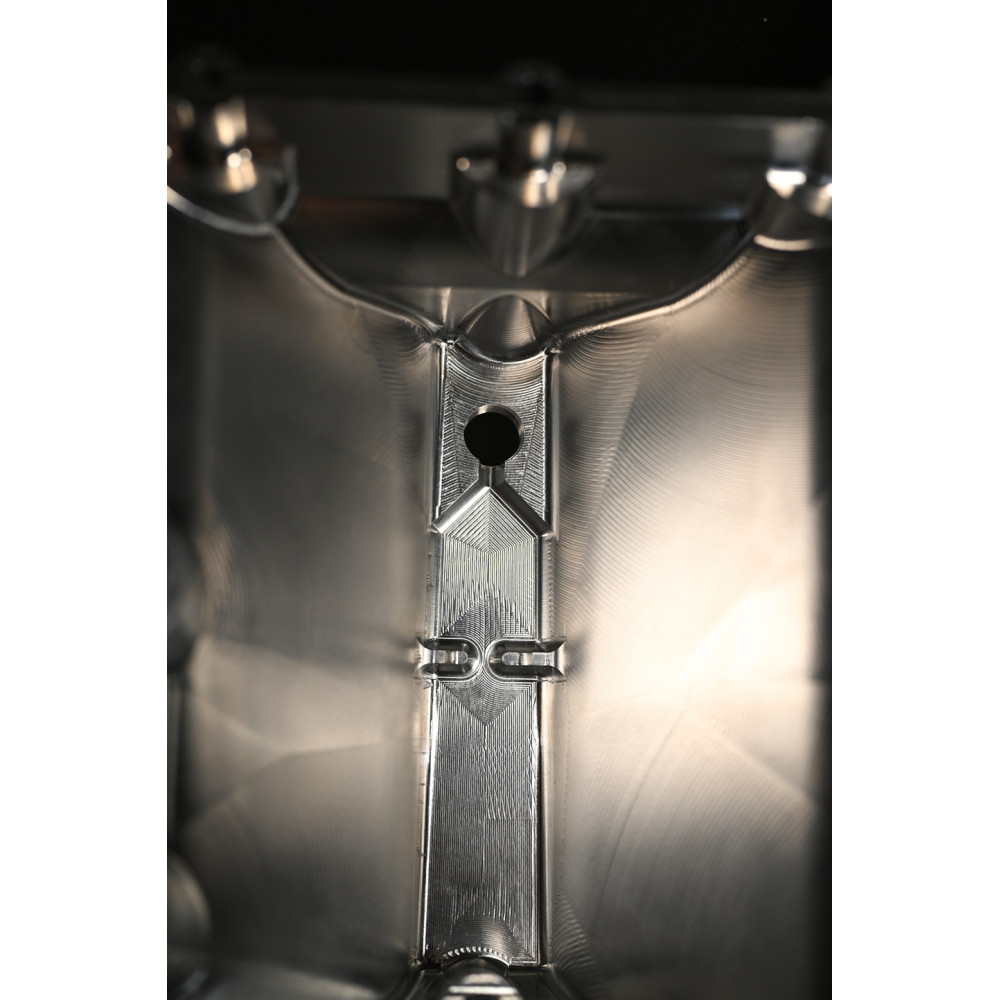

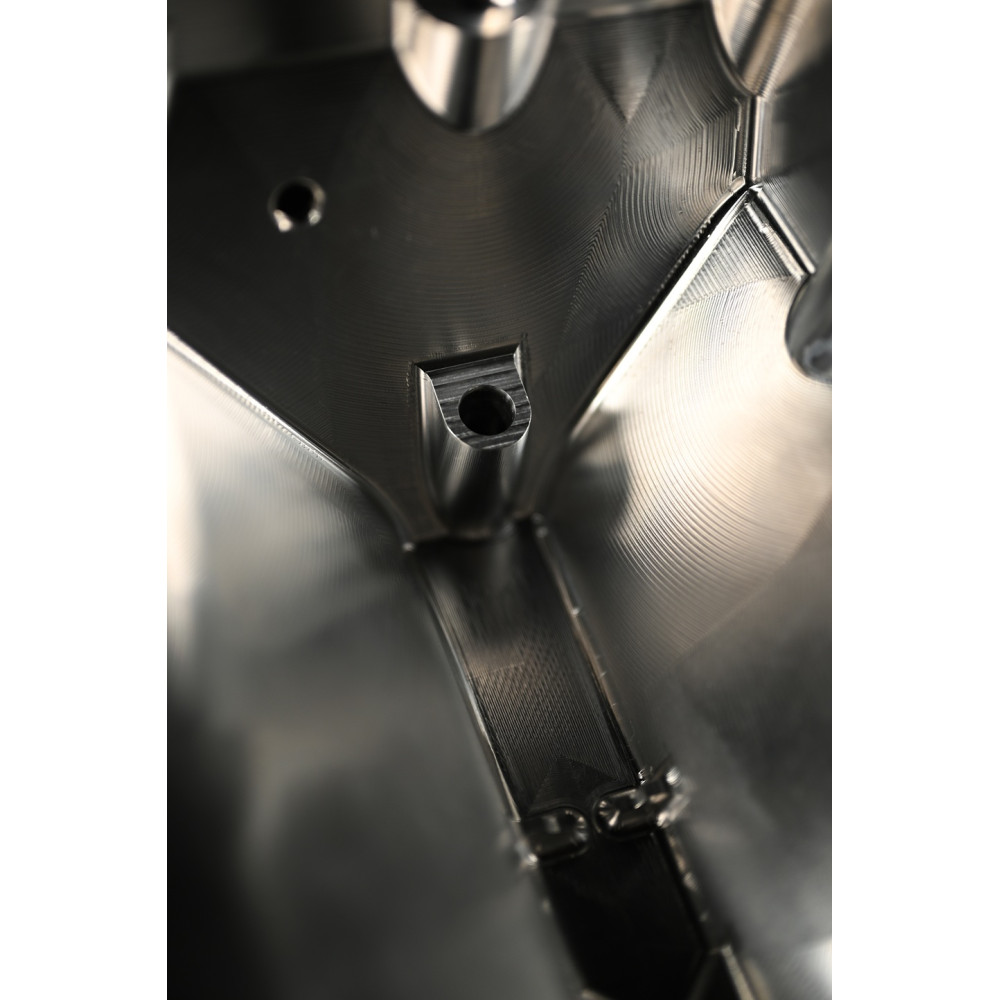

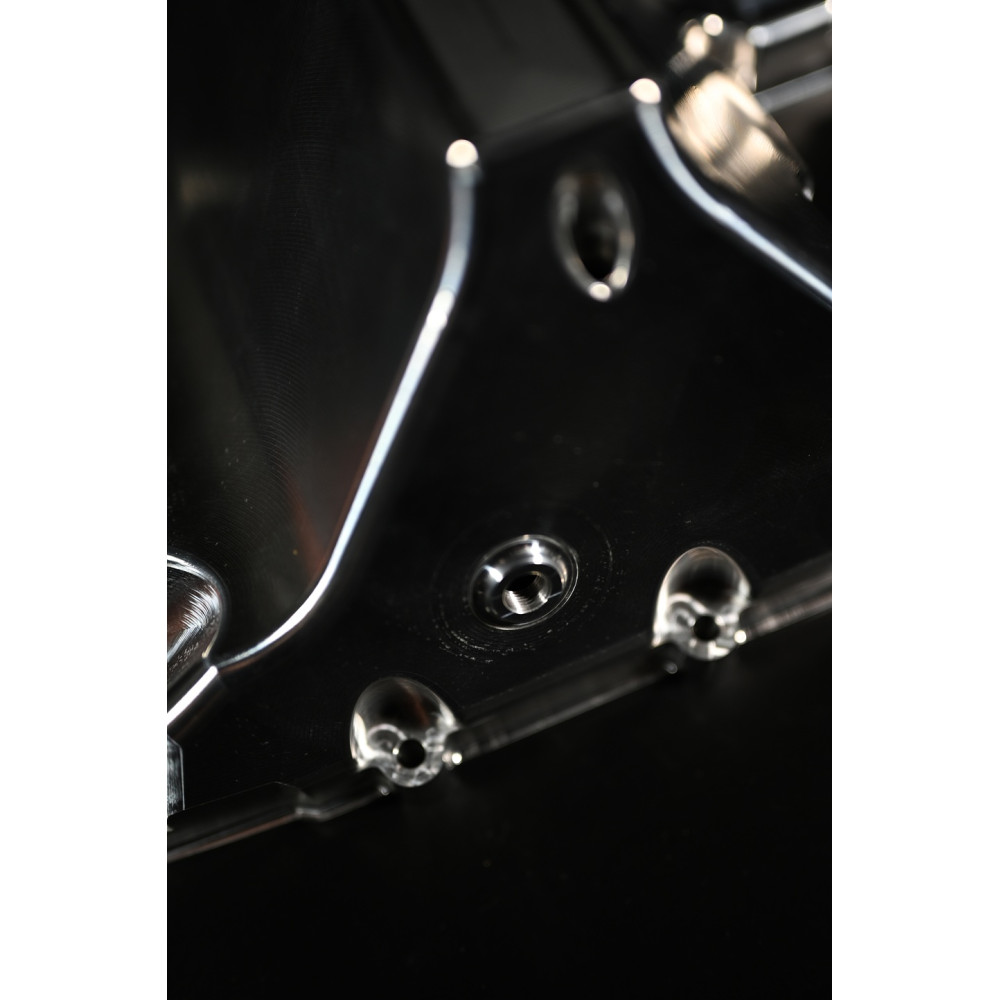

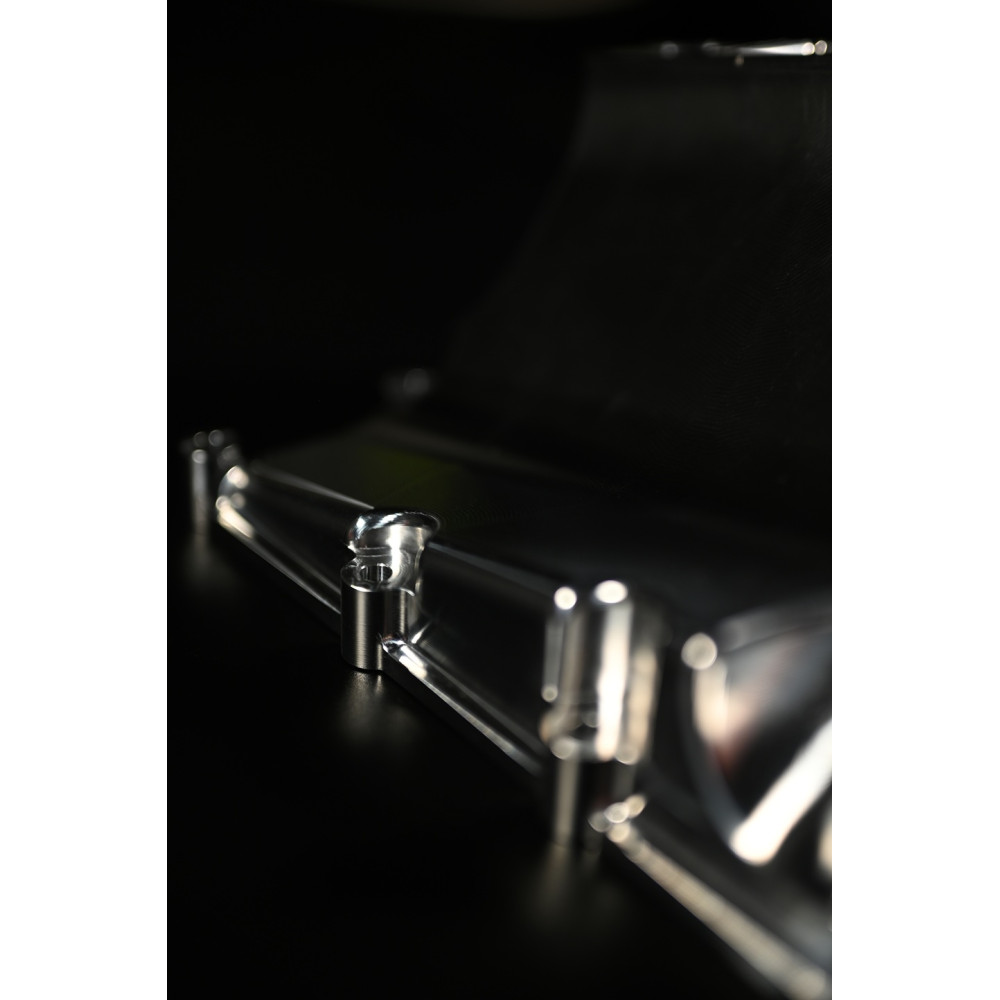

First to the market after years of requests and thoroughly tested on our shop 2023 BMW S1000RR, this aerospace grade, aluminum oil pan is the perfect replacement for your stock oil pan, with no compromises! This is a perfect replacement for lowered bikes, or track riders looking for a more robust option than stock while not compromising to a flat design for drag only.
One of the main issues when lowering your 2020+ S1000RR/M1000RR is the height of the stock oil pan and the material it's made of. We've had dozens of customers bottom out their stock pan and put a hole in it or spin off the drain plug causing catastrophic failure. Not only is this potentially bad for the engine by running low on oil, it could be bad for the rider if oil gets on the tire and causes a wreck.
In addition to these issues, there is the issue of cost and parts availability. The stock oil pan is never in stock, expensive, and when damaged and the total cost to replace the unit with peripheral accessories is in excess of $750 before any other damage to tire etc. It is frequently out of stock as well with long lead times. With our billet oil pan it can take the abuse you put it through without the risk of damage to your motorcycle or yourself.
PLEASE NOTE
This oil pan does not come with any peripheral accessories. You will need new TTY (torque to yield) oil pan bolts, BMW RTV gasket, an oil change kit and trimming of your OEM oil pickup tube will be required. A cutting template for your pickup tube will be included in your order. An NPT Bung or oil temp sensor will be needed to fill the NPT Bung hole. The below part numbers can be ordered from your local BMW dealer or varying locations online.
PART NUMBERS NEEDED
Liquid gasket (1): 07580397777
Oil pan bolts (14): 11147724485
Drain plug crush washer (1): 07119963252
MOTORCYCLE COMPATIBILITY
2020-2025 S1000RR
2021-2025 M1000RR
2023-2025 M1000R
2021-2025 S1000R
2020-2025 S1000XR
2023-2025 M1000XR
INSTALLATION APPROXIMATELY 2 HOURS
| Merke | Modell | Fra år | Til år |
|---|---|---|---|
| BMW | S1000RR | 2019 | |
| BMW | M1000XR | 2023 | |
| BMW | S1000XR | 2020 | |
| BMW | S1000R | 2021 | |
| BMW | M1000R | 2022 | |
| BMW | M1000RR | 2021 |
